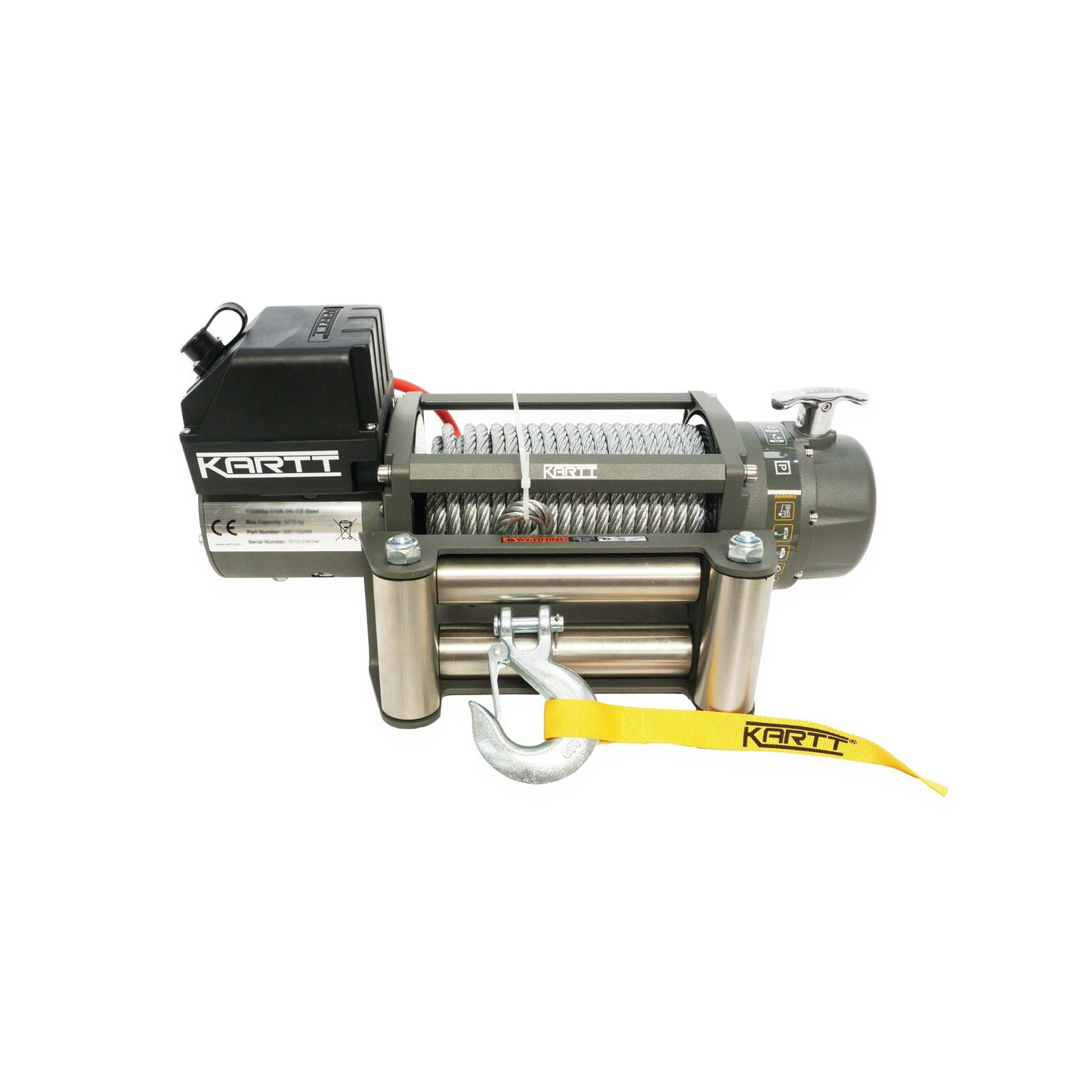

KARTT 9500 lbs (42.2kN) 12V Electric Winch with Steel Wire Rope
The KARTT 9500 lbs (42.2kN) 12V Electric Winch is designed for light trailers, 4x4s and other suitable applications. Featuring a durable steel wire rope and reliable 12V operation, it provides strong and dependable pulling performance.
All KARTT winches are EN 14492-1 compliant for professional use and IP67 rated for water and dust protection.
The winch includes a wired/wireless remote control with a detachable power cord, allowing the controller to be easily converted for wireless operation.
Includes a full installation kit and comprehensive user guide for safe operation. KARTT winches offer excellent value, reliable quality, after-sales support, and a range of accessories and spare parts.
P/N WK95012W
Max pulling force 4309 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 218:1
Clutch lever: manual
Brake: automatic 100% Load Holding

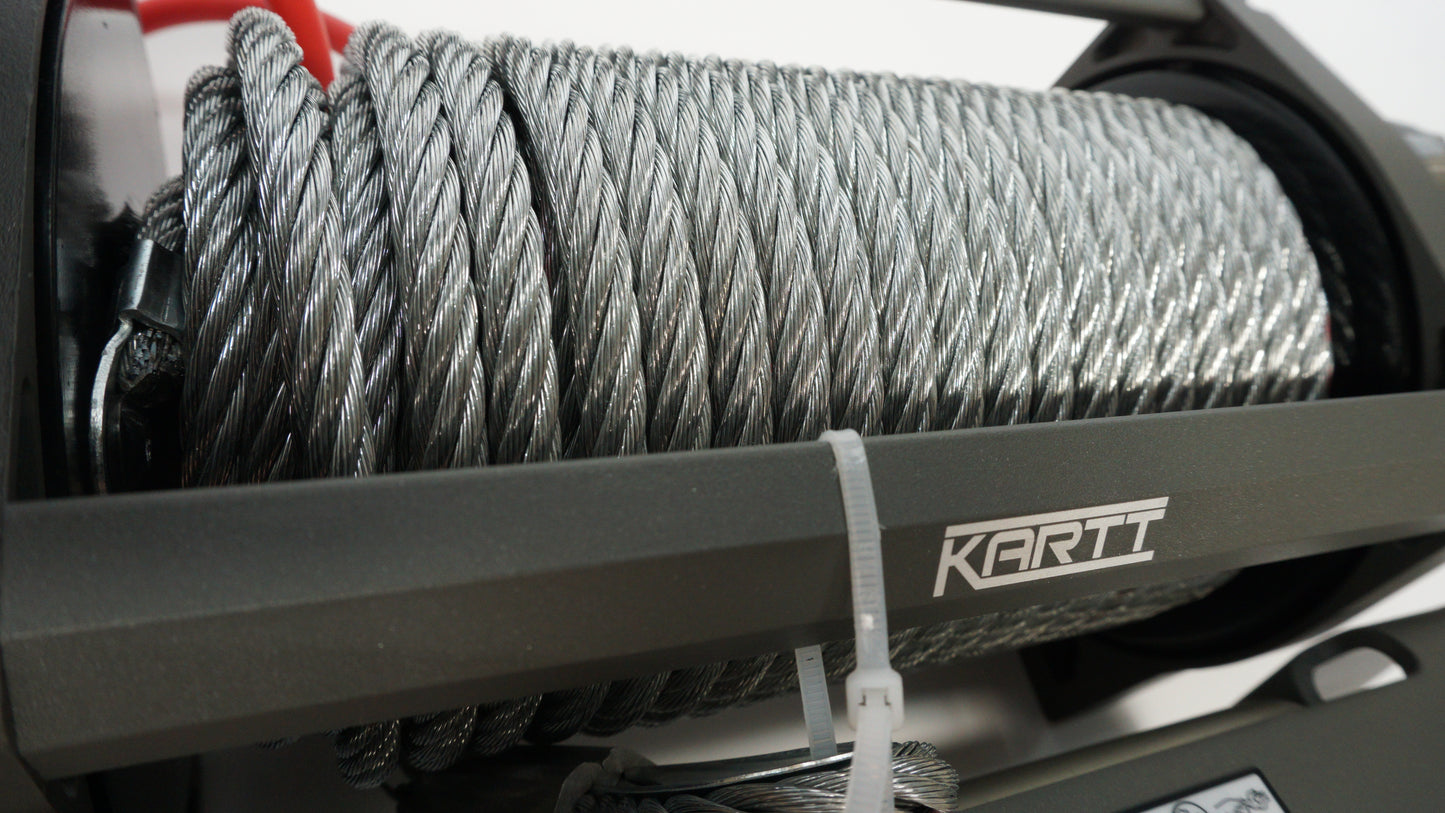

Rope: wire 8.3mm x 26m with hook
Remote: wired & wireless
Installed weight: 37.5 kg
Gross/Shipping weight: 38.8 kg
Certificate: CE
ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 6.8 m/min, 74A
Line Pull 5216 kg 1.46 m/min, 350A

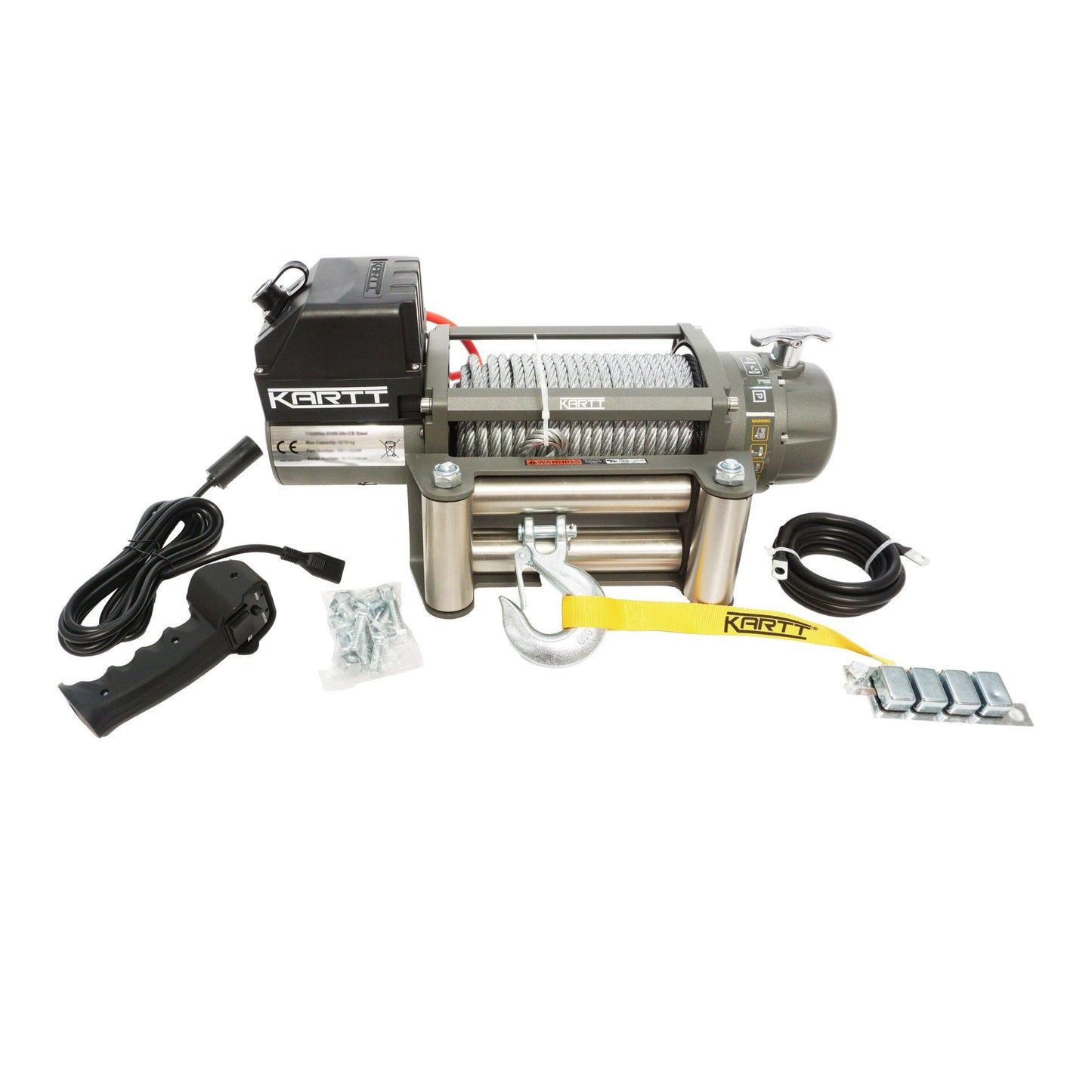

INCLUDES
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Wired switch
RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate

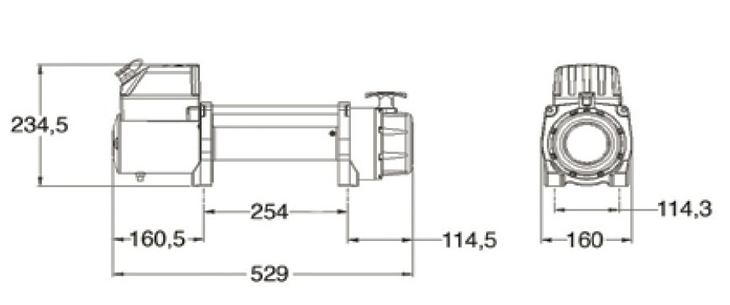

Bolt Hole Mounting Centres 254mm x 114.3
Outer Case Dimensions 59.5 x 31.5 x 31cm
