4500 lbs Electric Winch with steel wire
4500 lbs Electric Winch with steel wire
SKU:WK45012WB
Couldn't load pickup availability
Share

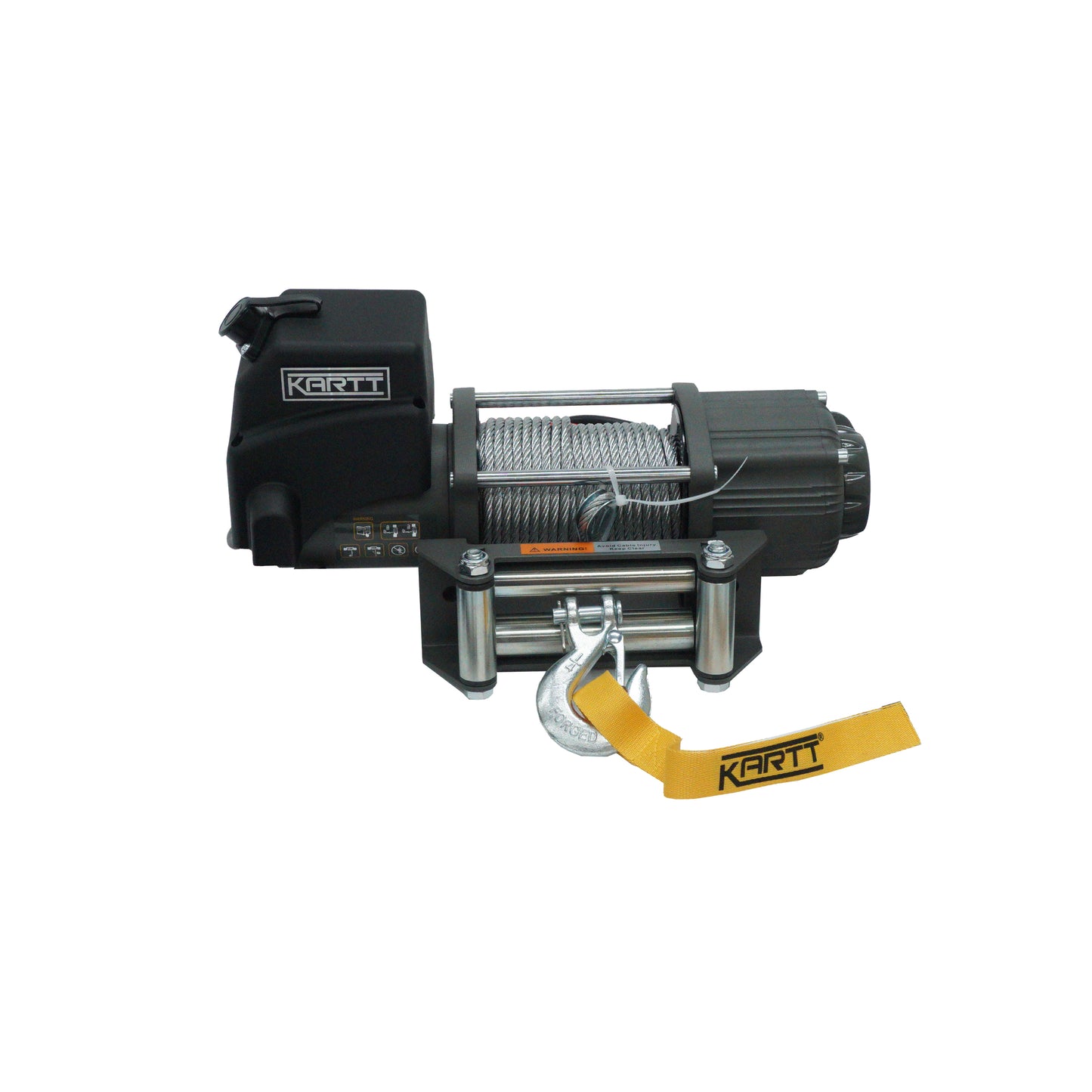

KARTT 4500 lbs (20kN) 12V Electric Winch with Steel Wire Rope

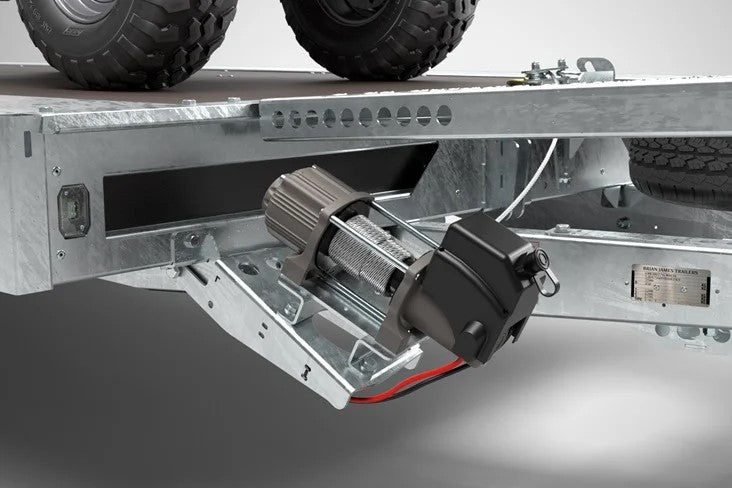

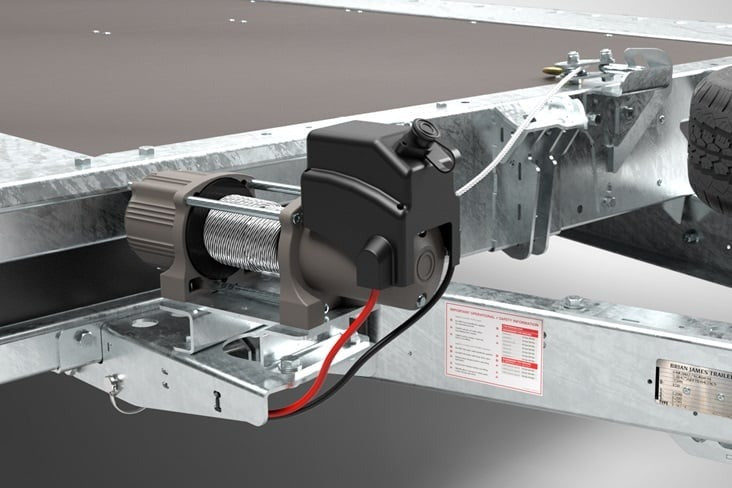

The KARTT 4500 lbs (20kN) 12V Electric Winch is ideal for light trailers, ATVs and other suitable applications. Built for reliable performance, it features a durable steel wire rope and convenient wired/wireless remote control.
All KARTT winches are EN 14492-1 compliant for professional use and IP67 rated for water and dust protection.
The supplied wired controller features a detachable power cord, allowing it to be used as a wireless remote for added convenience.
Includes a full installation kit and comprehensive user guide for safe operation. KARTT winches offer excellent value, reliable quality, after-sales support, and a range of accessories and spare parts.
P/N (WK45012WB)
Max pulling force 2041 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 266:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 5.5mm x 15.2m
Remote: wired & wireless
Installed weight: 13.2 kg
Gross/Shipping weight: 14.1 kg
Certificate: CE
ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 7.35 m/min, 26A
Line Pull 2041 kg 1.65 m/min, 238A

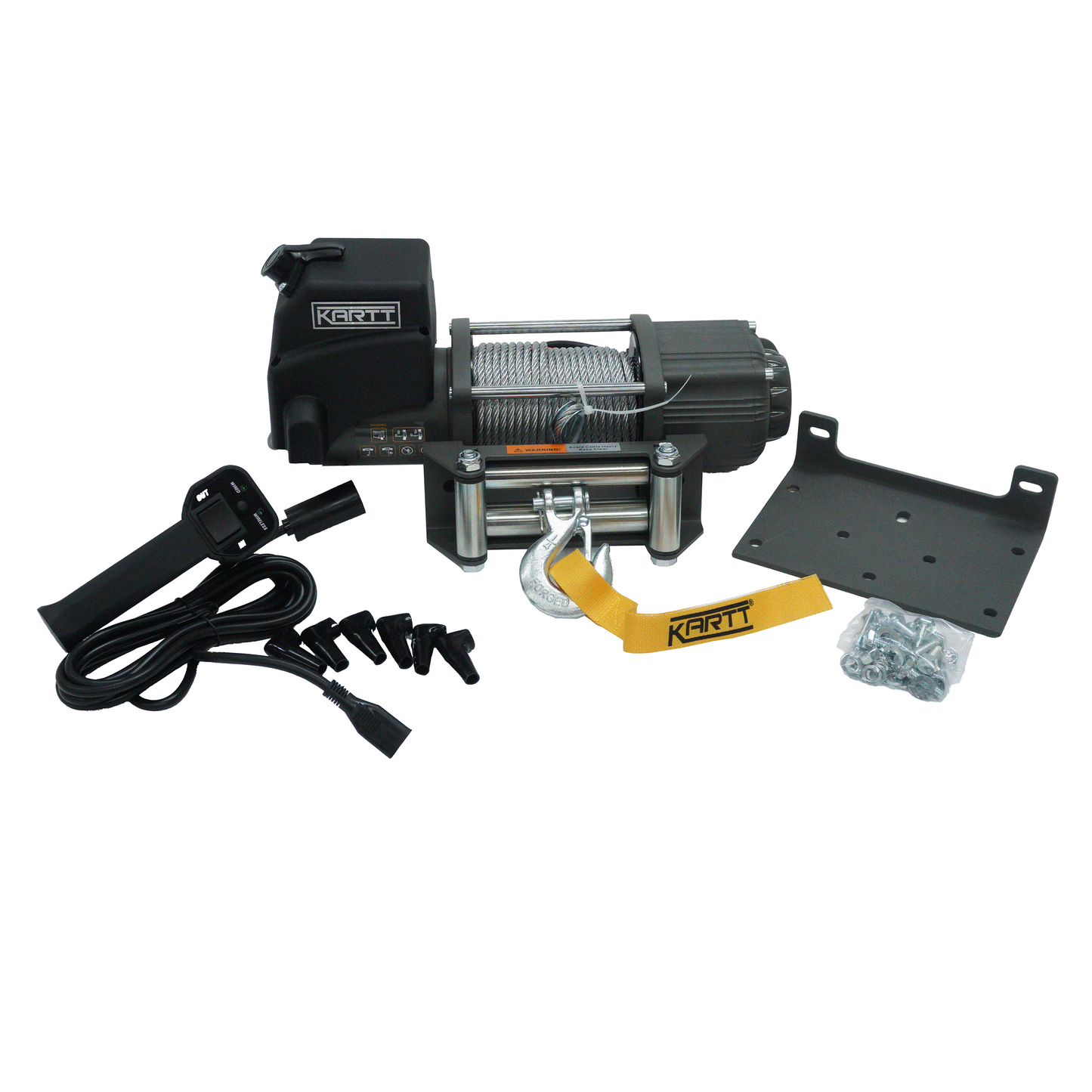

INCLUDES
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Mounting Plate with Fittings
RECOMMENDED ACCESSORIES
Winch Cover - Part Number: WKS010

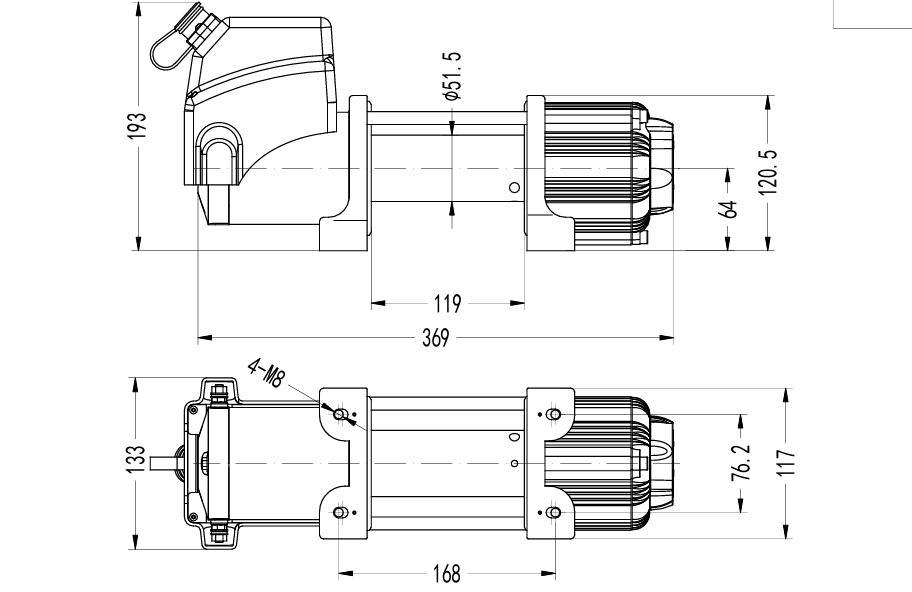

Bolt Hole Mounting Centres 76mm x 168
Outer Case Dimensions 44.5 x 26.5 x 28.5cm
