1500 lbs 12v Electric Winch Steel Wire

All KARTT winches are EN14492-1 Compliant for professional use and sealed to IP67 waterproof standards, built for reliability in off-road, workshop, or trailer environments.

This compact but mighty winch is designed specifically for ATVs and quad bikes, delivering powerful performance in tight spaces. Featuring a 3-stage planetary gear system, cam-actuated clutch, and patent-pending disc brake, it offers smooth operation with exceptional safety.

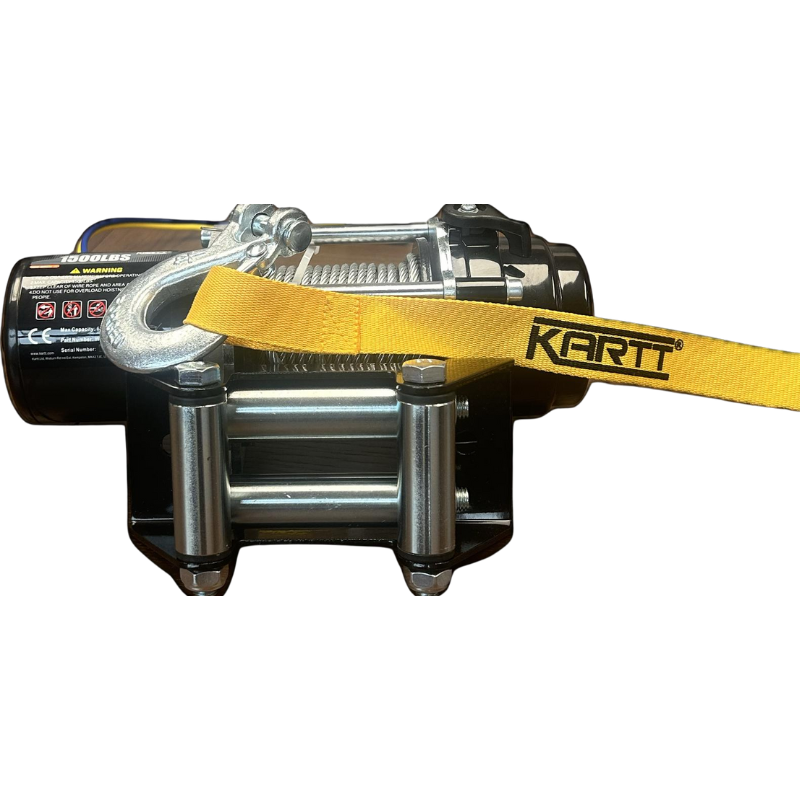

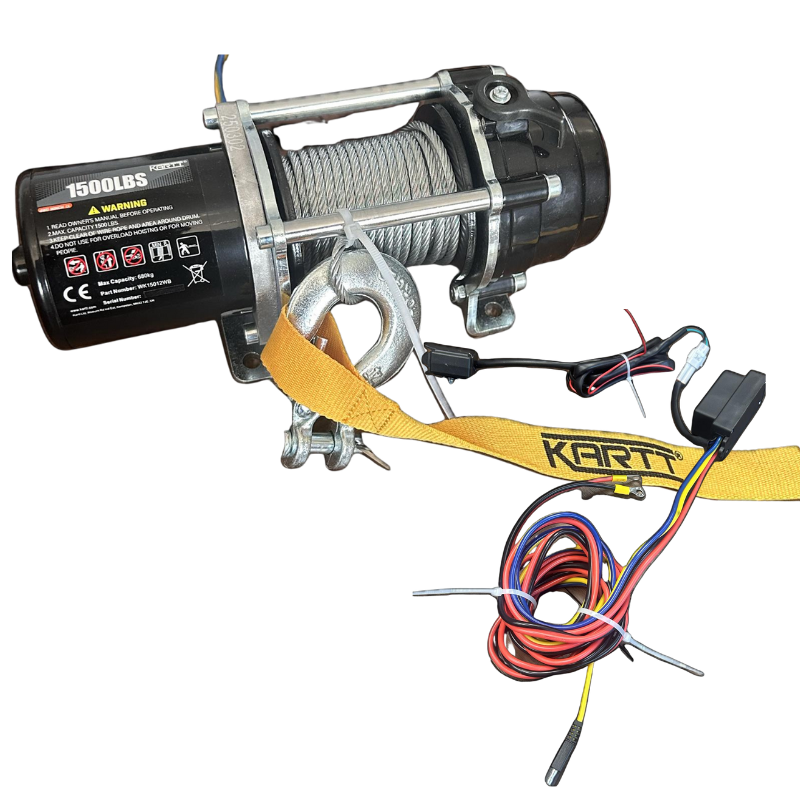

Supplied with a wired controller and handlebar-mounted mini rocker switch, this winch is easy to operate from the driver’s seat or a safe distance. It’s pre-fitted with 12.2m of 4mm steel wire rope and includes everything needed for quick installation, including a roller fairlead.

All units include a full fitting kit and detailed user manual, backed by Kartt’s 12-month professional warranty and after-sales support.

P/N: WK15012WB

Max pulling force: 680 kg
Supply voltage: 12V
Motor: 0.4hp (310W) permanent magnet
Gearing: 3-stage planetary
Gear ratio: 103:1
Clutch lever: Cam-actuated
Brake: Patent-pending disc brake

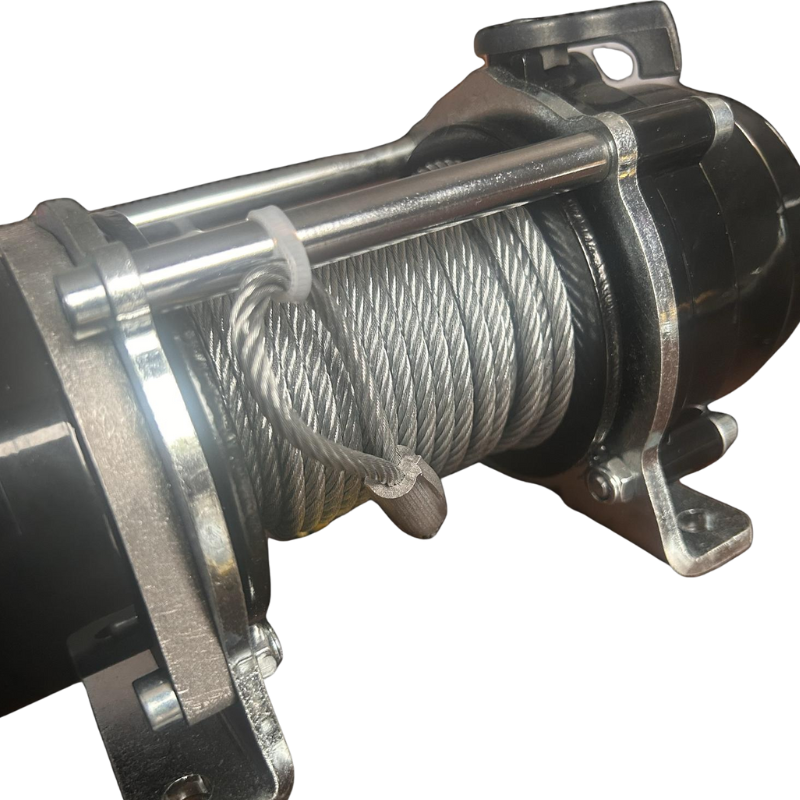

Wire rope: 12.2m x 4mm (40ft x 5/32”)
Control: Handlebar rocker switch + wired controller
Drum Size: 1.5” diameter / 3.0” length

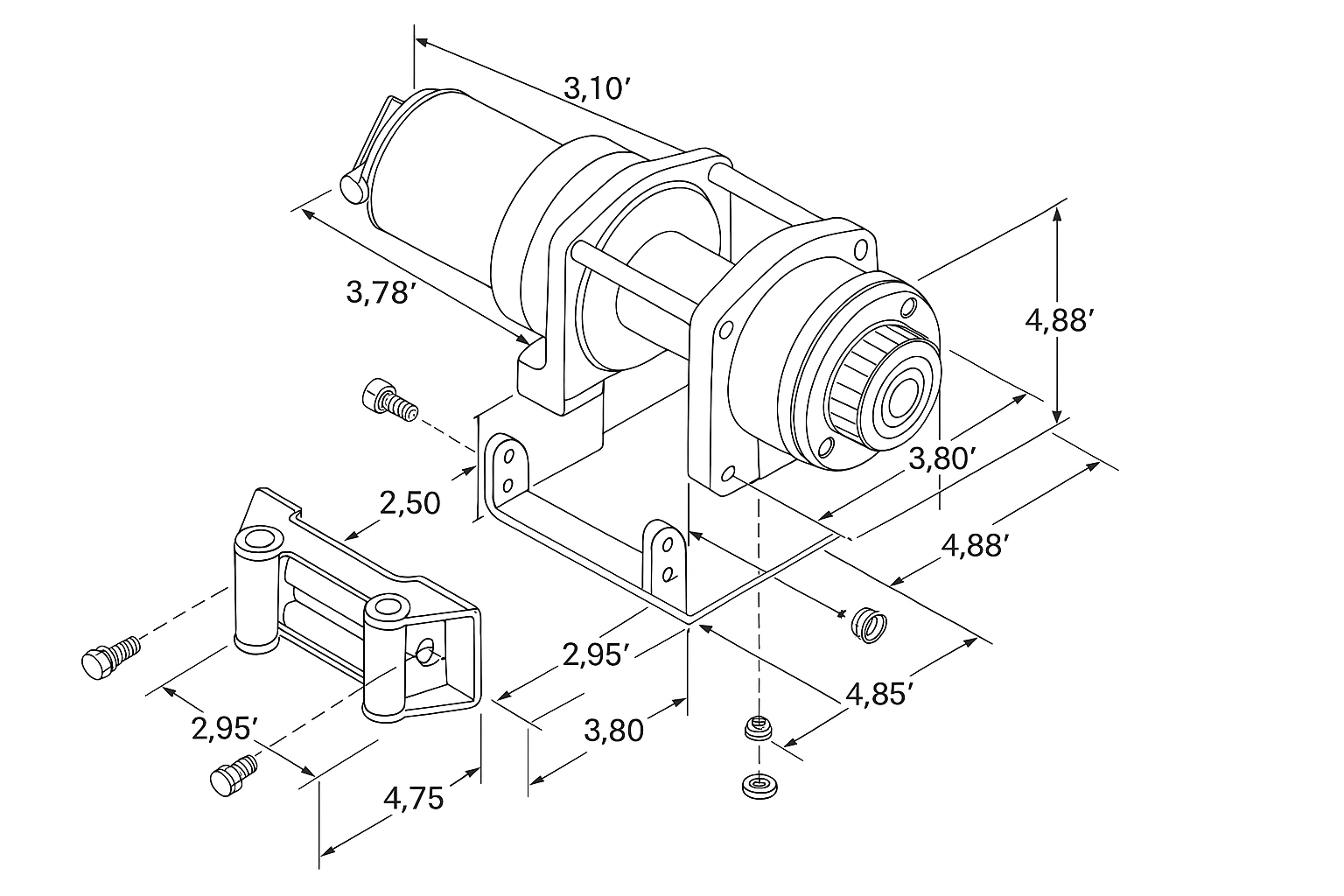

Bolt hole pattern: 76 x 124 mm
Recommended battery: 12Ah minimum
Battery leads: 6 gauge
Line speed (0kg): 4.5m/min at 8A
Line speed (680kg): 1.3m/min at 70A

Certification: CE
