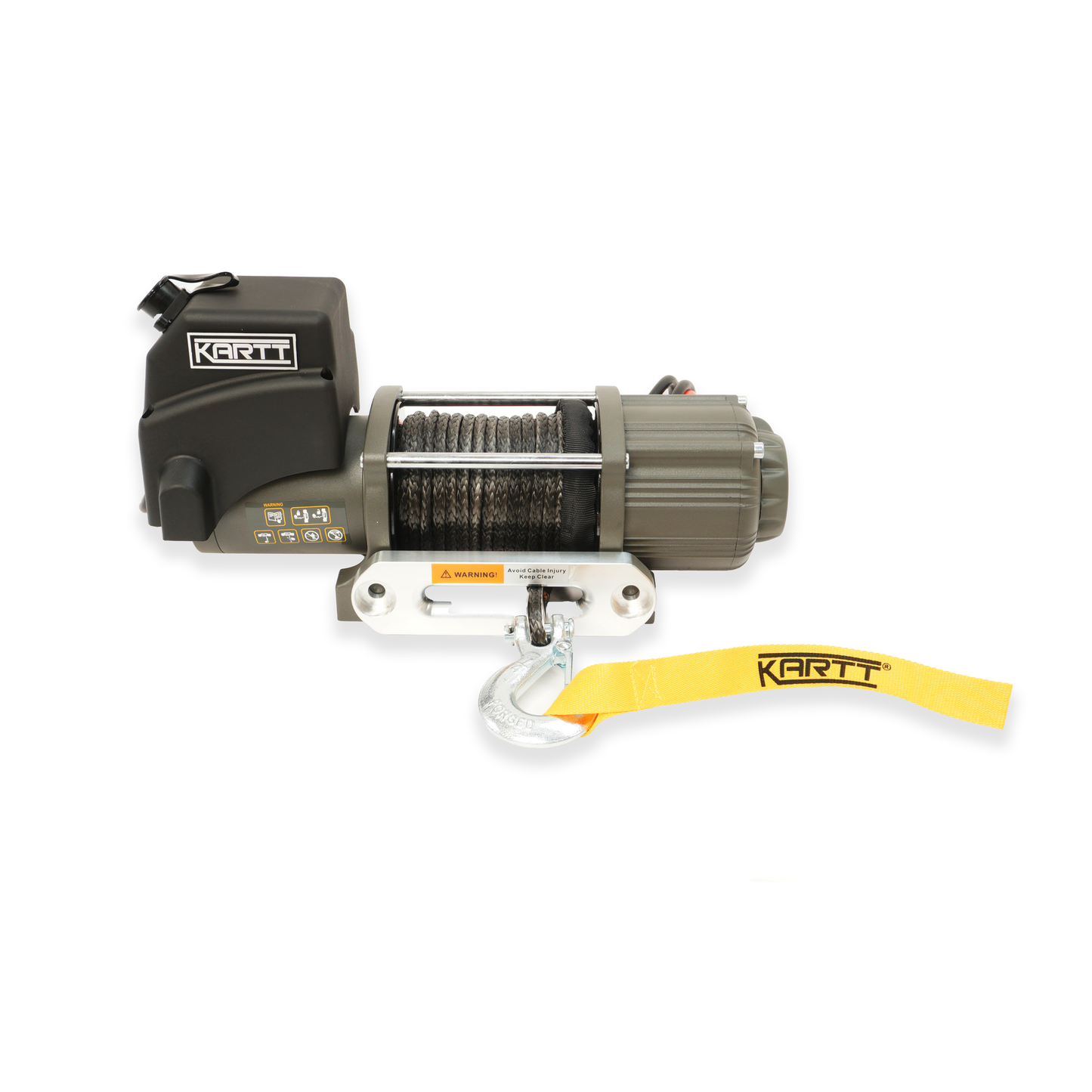

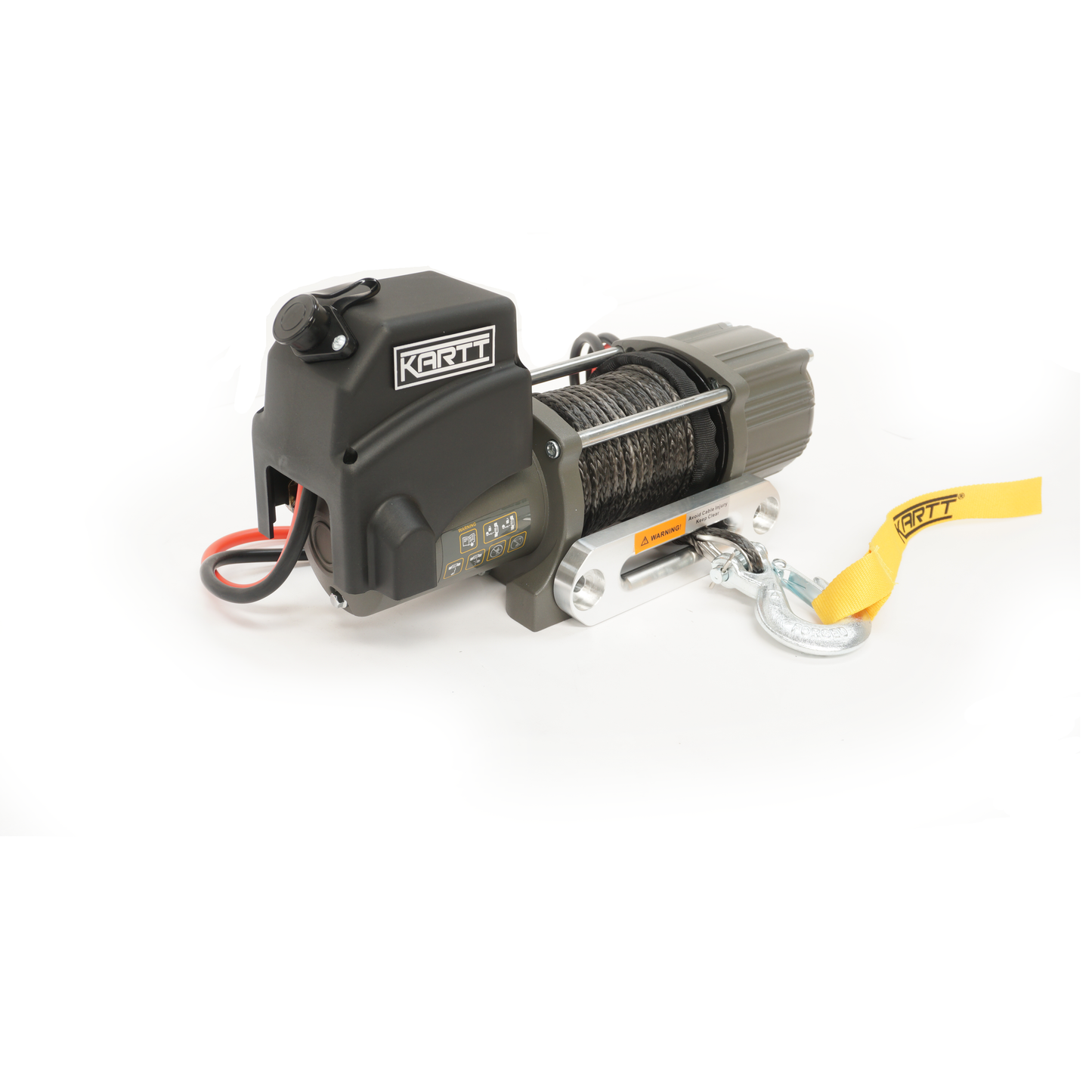

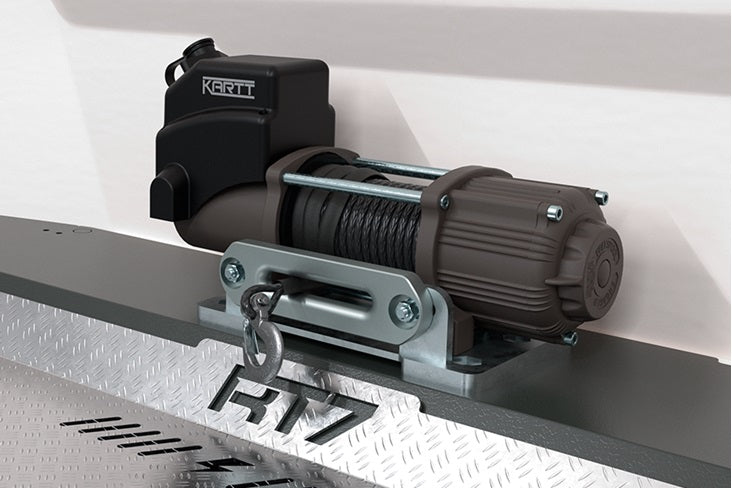

KARTT 4500 lbs (20kN) 12V Electric Winch with Synthetic Rope – WK45012SB

The KARTT WK45012SB is a compact and powerful 12V electric winch, ideal for light trailers, ATVs and other suitable applications. Featuring a 5.5mm x 15.2m UHMWPE (Ultra-High Molecular weight polyethylene) synthetic rope, 3-stage planetary gearing and an automatic 100% load-holding brake.

The winch includes a heavy duty wired and wireless remote control, with a detachable power cord allowing the controller to be used wirelessly for added convenience.

All KARTT winches are EN 14492:1 compliant for professional use and feature an IP67 waterproof rating.



P/N WK45012SB
Max pulling force 2041 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 266:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: Synthetic
Remote: wired & wireless
Certificate: CE

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 7.35 m/min, 26A
Line Pull 2041 kg 1.65 m/min, 238A

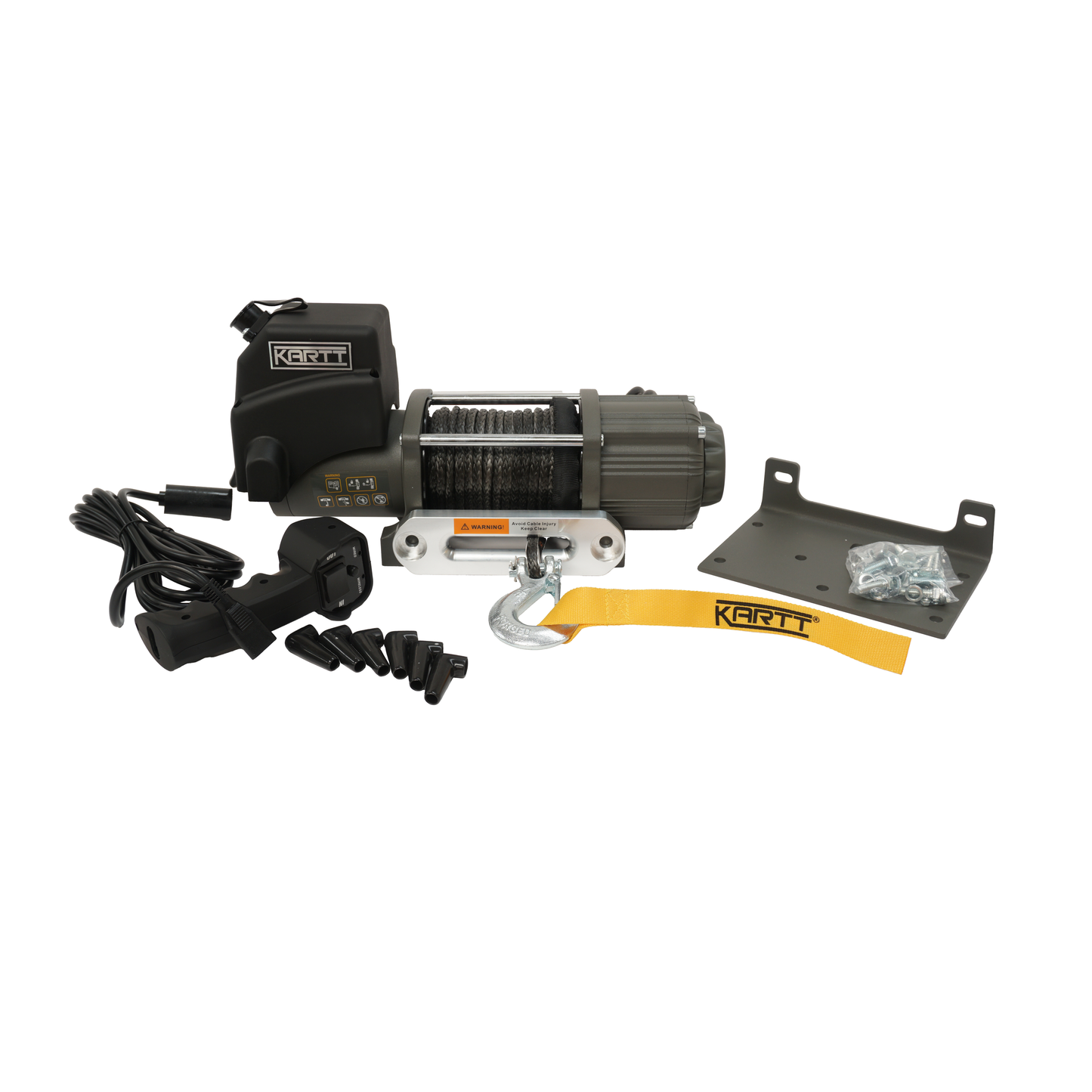

INCLUDES
Winch
Hawse Fairlead
Synthetic rope with hook
Wired/wireless hand held remote control                                                                  Mounting Plate with Fittings

RECOMMENDED ACCESSORIES
 Winch Cover: Part Number - WKS010

Bolt Hole Mounting Centres  76mm x 168

Outer Case Dimensions 44.5 x 26.5 x 28.5cm
