11500 lbs 12v Electric Winch Synthetic Rope
11500 lbs 12v Electric Winch Synthetic Rope
Couldn't load pickup availability
Share
All KARTT winches are EN14492:1 Compliant for professional use and waterproof rated to IP 67.
These winches are supplied with a unique and handy wired controller that has a detachable power cord, transforming it to a wireless remote control unit.
Our product information details the full installation kit provided with each unit along wtih a comprehensive User Guide for winching safely. KARTT electric winches are exceptionally good value for money and at KARTT we underpin the remarkable product quality with outstanding after sales support and a range of accessories and spares.

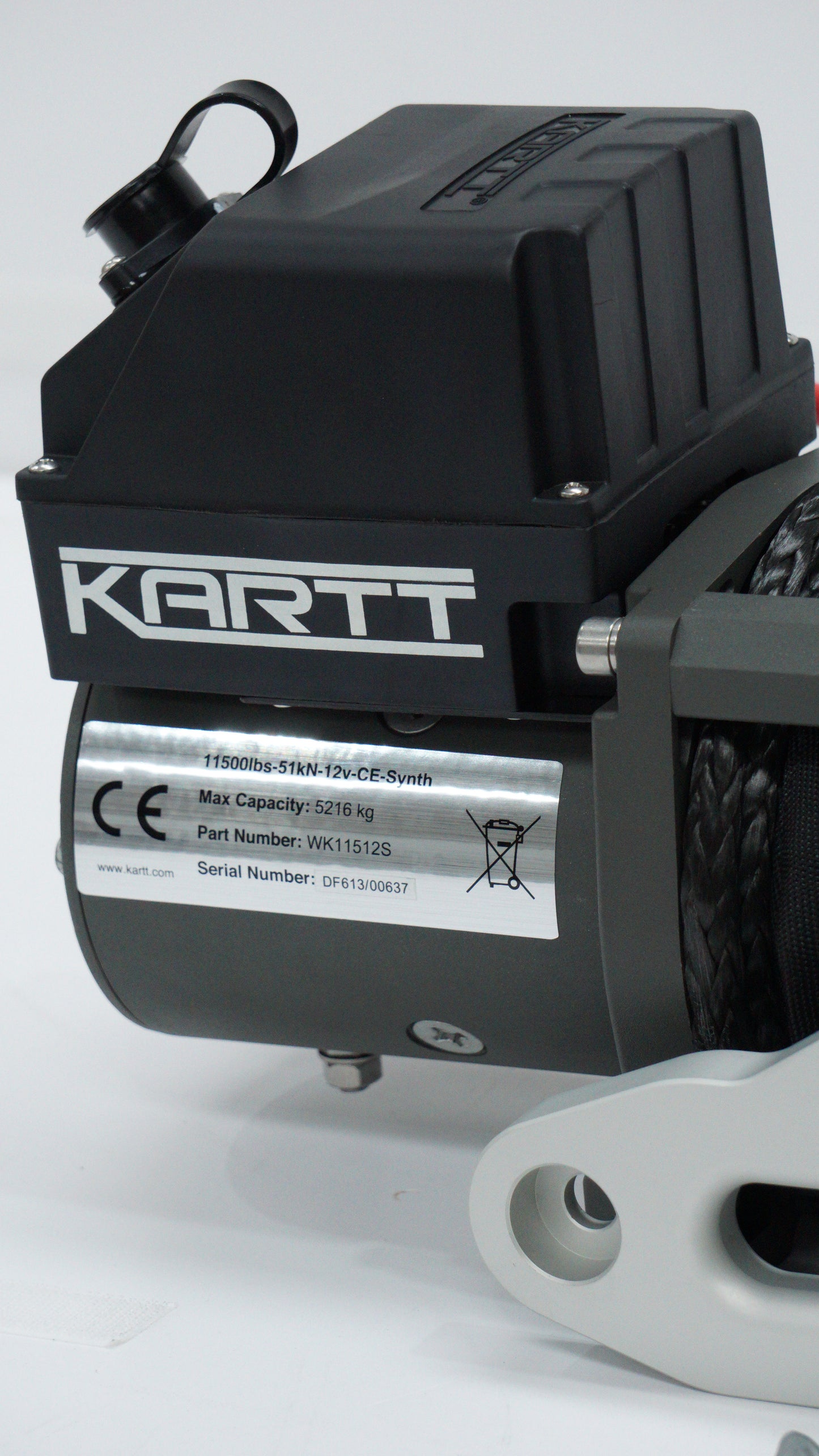

P/N WK11512S
Max pulling force 5216 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 265:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 9.5mm x 24m with hook
Remote: wired & wireless
Installed weight: 30.4 kg
Gross/Shipping weight: 31.8 kg
Certificate: CE
ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 6.8 m/min, 74A
Line Pull 5216 kg 1.46 m/min, 350A

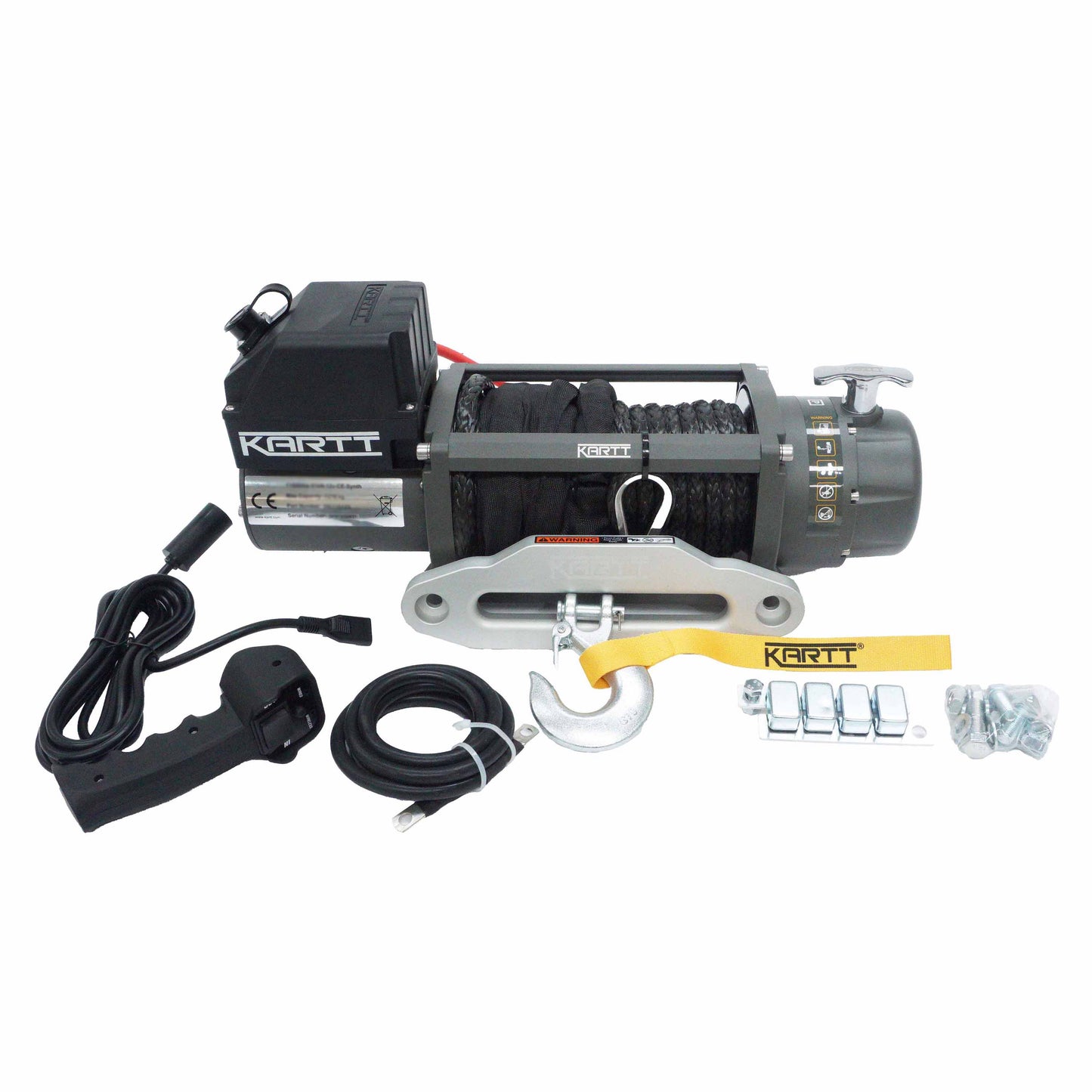

INCLUDES
Winch
Hawse fairlead
Synthetic rope with hook
Wired/wireless hand held remote control
Wired switch
RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate
Bolt Hole Mounting Centres 254mm x 114.3
Outer Case Dimensions 59.5 x 31.5 x 31cm
