11500 lbs 51kN 24v Electric Winch Steel Wire
11500 lbs 51kN 24v Electric Winch Steel Wire
SKU:WK11524W
Couldn't load pickup availability
Share

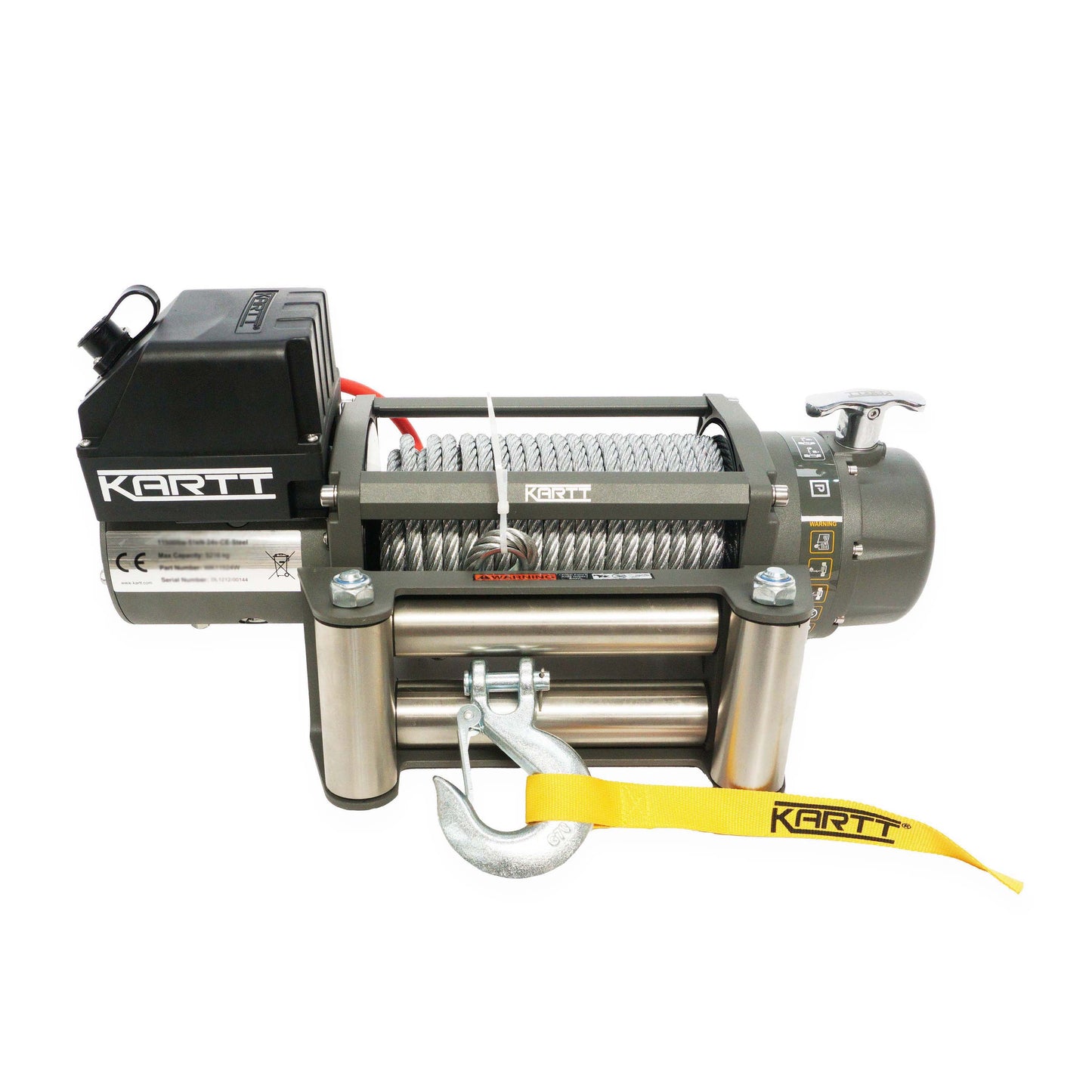

KARTT 11,500 lbs (51kN) 24V Electric Winch with Steel Wire Rope
The KARTT 11,500 lbs (51kN) 24V Electric Winch is designed for light trailers, 4x4s and other suitable applications. Featuring a durable steel wire rope and reliable 24V operation, it provides strong and dependable pulling performance.
All KARTT winches are EN 14492-1 compliant for professional use and IP67 rated for water and dust protection.
The winch includes a wired/wireless remote control with a detachable power cord, allowing the controller to be easily converted for wireless operation.
Includes a full installation kit and comprehensive user guide for safe operation. KARTT winches offer excellent value, reliable quality, after-sales support, and a range of accessories and spare parts.
P/N WK11524W
Max pulling force 5216 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 265:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 9.5mm x 28m with hook
Remote: wired & wireless
Installed weight: 39.6 kg
Gross/Shipping weight: 40.9 kg
Certificate: CE
ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 8.8 m/min, 74A
Line Pull 5216 kg 1.7 m/min, 350A

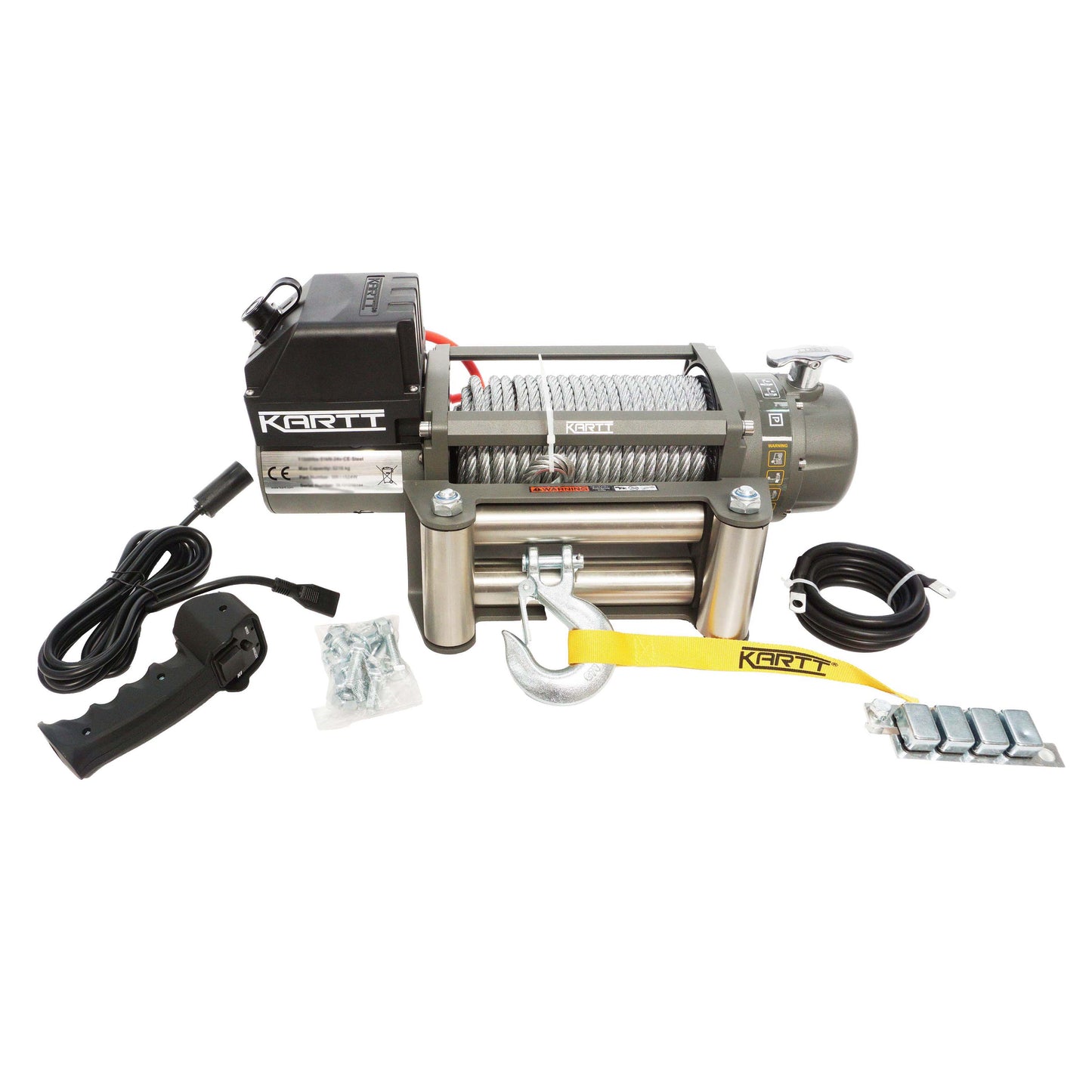

INCLUDES
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Wired switch
RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate

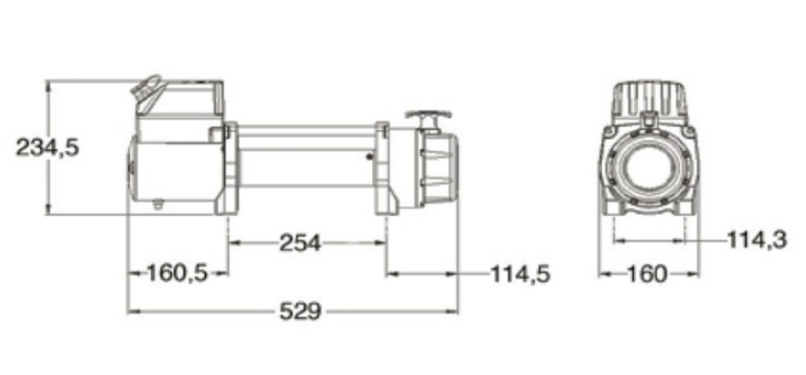

Bolt Hole Mounting Centres 254mm x 114.3
Outer Case Dimensions 59.5 x 31.5 x 31cm
