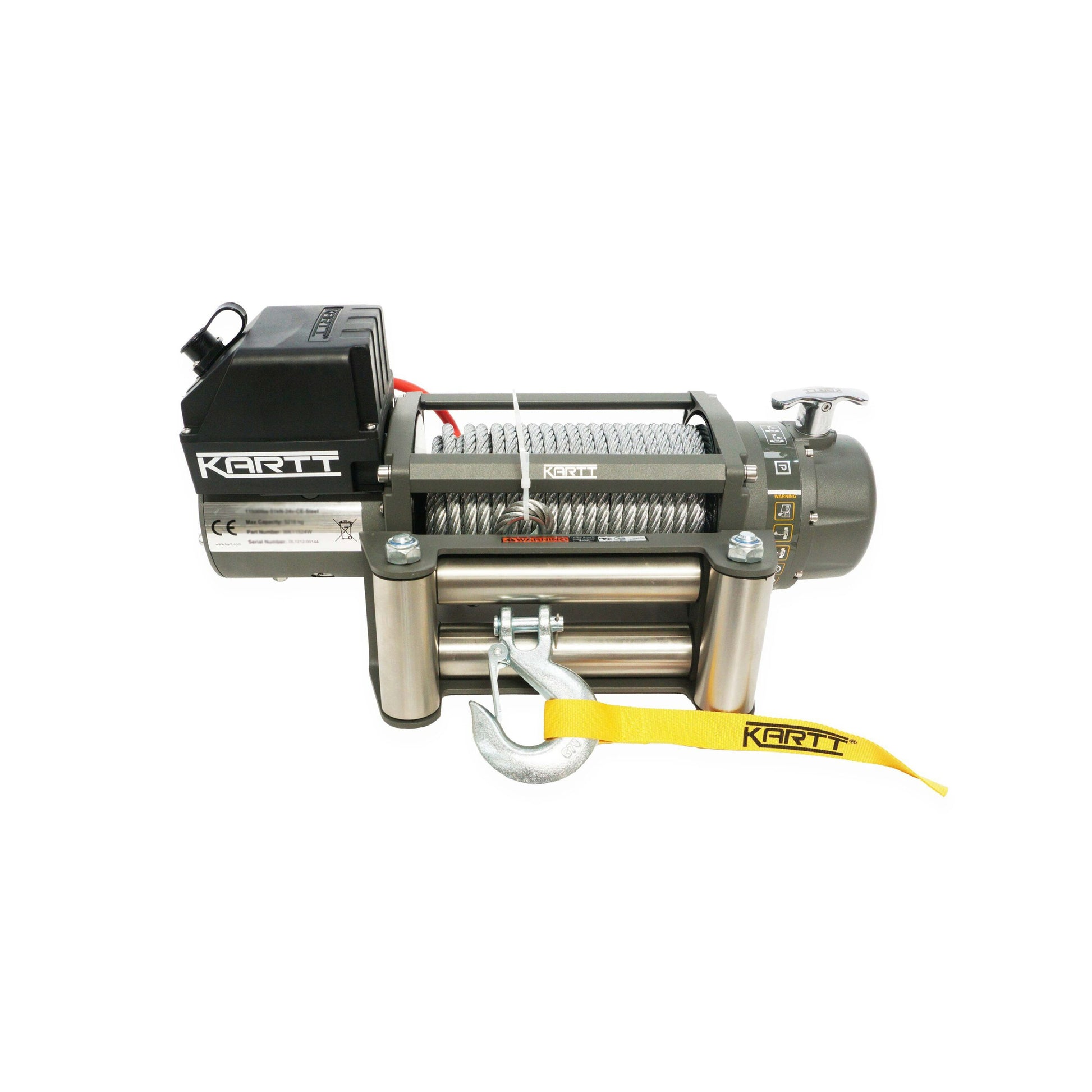

11500 lbs 12v Electric Winch Steel Wire

All KARTT winches are EN14492:1 Compliant for professional use and waterproof rated to IP 67.

P/N WK11512W

Max pulling force 5216 kg

Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 218:1
Clutch lever: manual
Brake: automatic 100% Load Holding

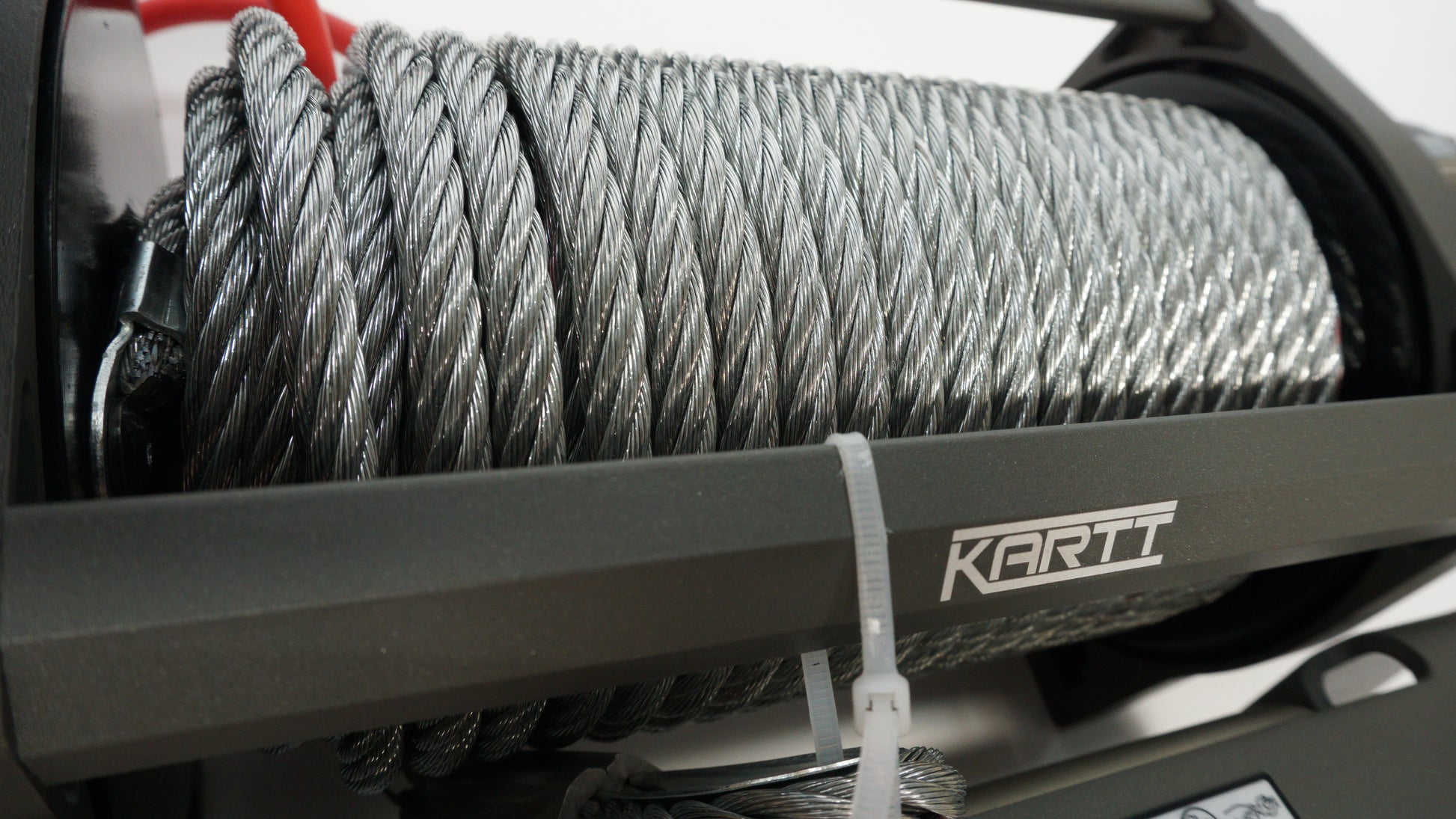

Rope: wire 9.5mm x 24m with hook
Remote: wired & wireless
Installed weight: 39.6 kg
Gross/Shipping weight: 40.9 kg
Certificate: CE

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 8.8 m/min, 74A
Line Pull 5216 kg 1.7 m/min, 350A.

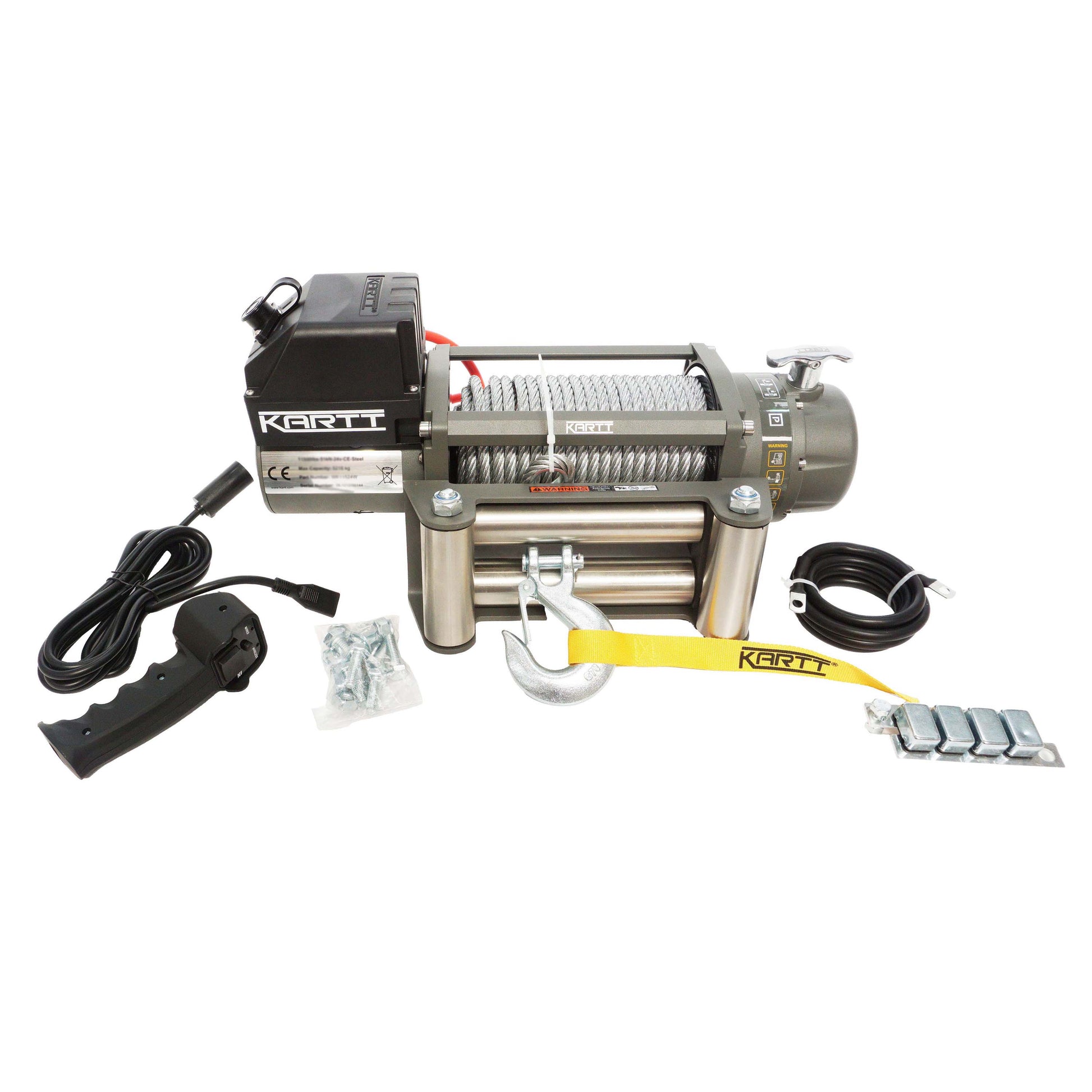

INCLUDES
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Wired switch

RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate

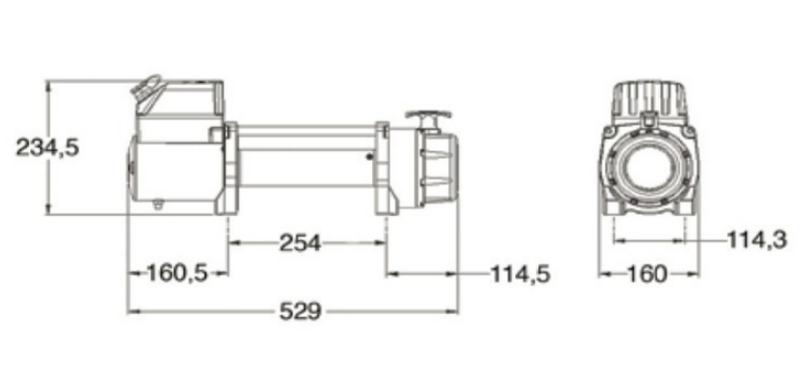

Bolt Hole Mounting Centres  254mm x 114.3

Outer Case Dimensions 59.5 x 31.5 x 31cm
